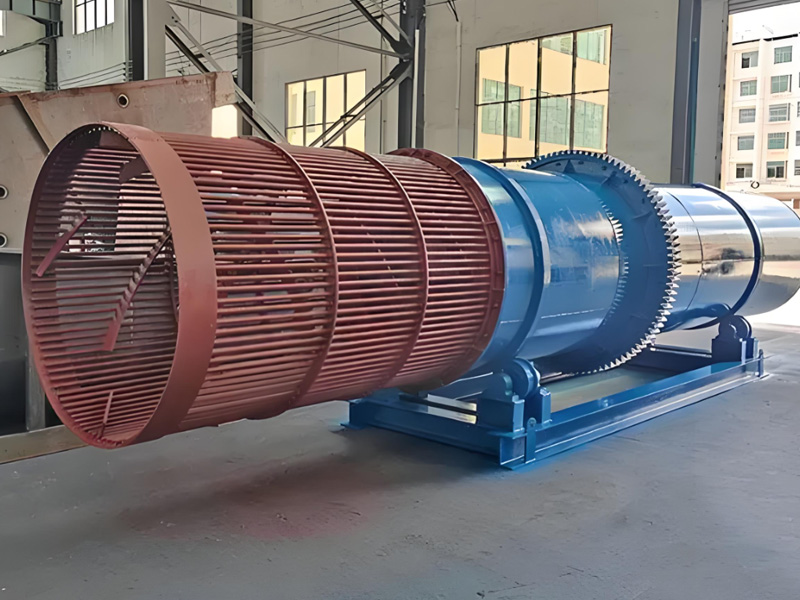

This device is widely used for various difficult to wash large ores. The washing machine is divided into two types: round and simple type and cylindrical with screening strip type. The latter method can divide the washed material into two levels of products:+40mm and -40mm. The -40mm can be further washed by a double spiral groove washing machine to divide the material into two levels of products:+2mm and -2mm. The washing efficiency can reach about 98%. This combination is currently the most effective method for difficult to wash ores.
| Model | YTX1890 | YTX2010 | YTX2412 |
| Cylinder diameter*length (m) | φ1.8×9.0 | φ2.0×10.0 | φ2.4×12.0 |
| Maximum cleaning material (mm) | 150 | 230 | 350 |
| Capacity (t/h) | 80-150 | 120-200 | 180-300 |
| Cylinder rotation speed (r/min) | 18 | 18 | 18 |
| Host power(kw) | 37 | 55 | 90 |
